Recommended Configuration for D Link DIR 600L Router

(For those familiar with configuring Wi-Fi settings)



We recommend that you change the following settings on your WiFi router for a smooth experience while using the Teewe device.

  • Network security should be configured to WPA (TKIP) +WPA2 (AES)
  •  “Enable wireless isolation” checkbox should be unchecked.
  • Multicast should be enabled and set to IGMP V3 if available.
  • WiFi enhanced mode should be enabled.
  • Wireless Modes should be configured to "Mixed 802.11b/g/n” or 802.11n.
  • UPnP should be enabled. UPnP provides compatibility with networking equipment, software and peripherals.
  • WMM should be enabled (if available).
  • Mac Filtering should be disabled.



Process to Configure your WiFi Router
(for those new to wifi-settings)

Step: 1 Log in to Admin Settings







Ø Launch internet browser and type on the url address box 192.168.0.1 and press enter.

Ø Type in the following defaults:

User Name: admin

Password: <leave blank>







You can now see the Dlink DIR-600M Home Screen, which looks like this





Step: 2 Setup your WiFi router




Ø

Ø Go to Setup menu.

Ø Click on "Wireless Cnnection" Button.



G



Ø S

Ø Set Security Mode as “WPA/WPA2 Wireless Security (enhanced)”.

Ø Select Cipher Type as “AUTO(TKIP/AES)”.

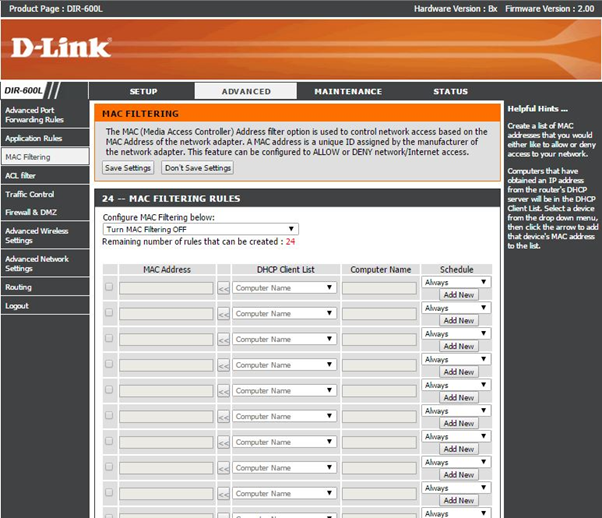

Ø E                          Ø Go to Mac Filtering in Advanced settings.

Ø Select “Turn MAC Filtering OFF”.

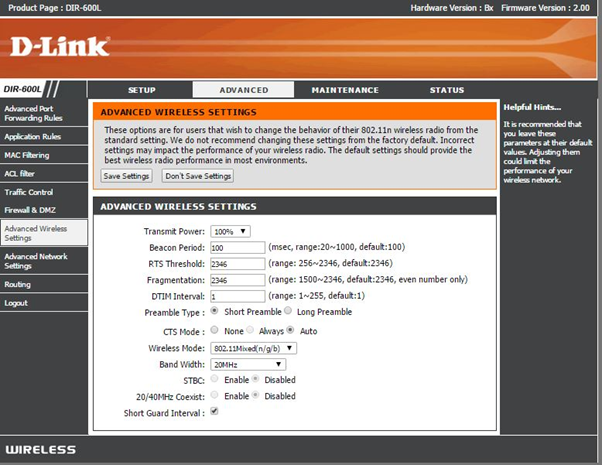

                         Ø Go to Advanced Wireless Settings.

                    Ø Select Wireless Mode as “802.11Mixed(n/g/b)".






                Ø Go to Advance Network Settings.

                    Ø Enable UPnP: ✓

              Ø Enable Multicast Streams: ✓

              Ø Wireless enhance mode: ✓
